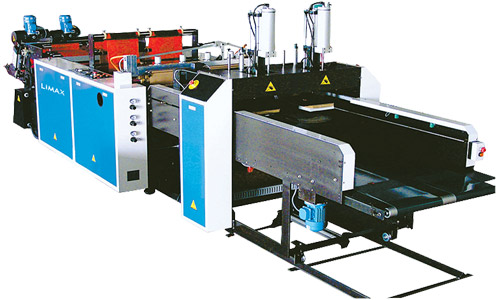

Limax's Beta T-Shirt machines provide an efficient and economical way for the large scale production of shopping bags in both high density and low density polyethylene. The consistency and reliability in performance of these twin track machines greatly enhance the productivity of the converters.
Product Specifications :
Machine Model
Beta 400
Beta 400HS
Beta 500
Norminal roller width/lane (mm)
400
400
500
Effective Sealing Width (mm)
380
380
450
Min. Bag Length (mm)
300
300
300
Max. Bag Length (mm)
650
650
850
Min. Film Thickness
2 x 12µ
2 x 12µ
2 x 12µ
Max. Film Thickness
2 x 35µ
2 x 35µ
2 x 35µ
Max. Cycle Speed (cpm)*
220
300
180
Air Requirement (l/min)
500
600
600
Electrical Consumption (approx) (Kw)
18
18
18
Weight (kg)
2100
2200
2500
Length (mm)
6000
6000
6000
Width (mm)
1500
1500
1700
Height (mm)
1400
1400
1400
* Dependant on film quality, film gauge and bag size.
High Performance
Speeds of up to 300cpm and suitable for different material types.
Independent control of upper and lower sealing.
Temperatures ensure strong seals for thin and heavy gauge film.
Strong Seals
Consistent seal quality through use of high conductivity seal bar material.
Reliability
Use of high quality servo motors and PLC ensures consistent performance.
Low Downtime / Low Scrap
All operating parameters such as speed, bag length, photocell, stack count can be adjusted while machine is running.
Precise print registration reduces printed film scrap.
Ease of Operation
Fully automatic hydraulic / pneumatic die cut with self indexing conveyor improves operator efficiency.
Control buttons on both sides of machine allow ease of operation.
Optional auto folding of each stack of bags enhances operator productivity.
