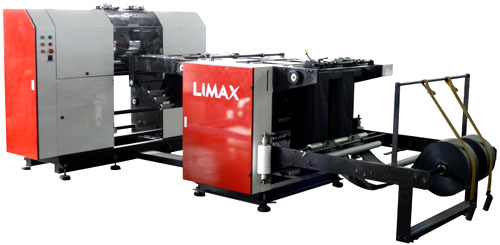

Limax Delta Bag-on-Roll machine is
designed for the continuous production of coreless bag on roll in
either single or twin lanes. Sealing by means of a rotating drum
allows sealing at lower temperatures due to the longer seal time
thus offering greater processing flexibility and product seal quality.
Machine is easy to handle, reliable and requires minimum maintenance.
It can be equipped with different accessories such as ¡°C¡±
folder and V-board for in line folding of star seal bags.
Product Specifications :
Machine Model
Delta 700
Delta 900
Machine sealing width (mm)
700
900
Film thickness (¦Ìm)
20-200
20-200
Bag lengths (mm)
200
200
- 1 sealing station
930 ¨C 1790
930 ¨C 1790
- 2 sealing stations
470 ¨C 930
470 ¨C 930
- 4 sealing stations
285 ¨C 470
285 ¨C 470
Max. drum speed (rpm)
80
80
Max. linear speed (m/min)
140
140
Finished roll width (mm)
600 x 1
700 x 1
280 x 2
300 x 2
Finished roll diameter (mm)
150
150
Limax
Converting Equipment - Enhancing Your Performance
