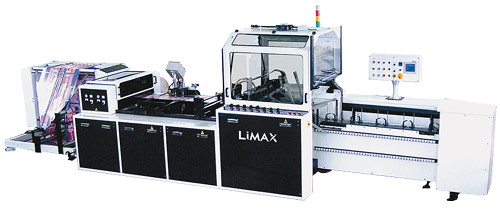

The Limax Omega 775 is a high speed servo wicket machine designed for the production of plain or printed wicket bags for automatic packaging. This machine features multiple servo drives for high performance and simplified routine maintenance.
Product Specifications :
Machine Model
Omega 775
Norminal roller width (mm)
750
Effective Sealing Width (mm)
710
Min. Draw Length (mm)
120
Max. Draw Length (mm)
340
Max. Linear Speed (m/min)
90
Max. Cycle Speed (cpm)*
350
Air Requirement (l/min)
800
Electrical Consumption (approx) (Kw)
16
Weight (kg)
2100
Length (mm)
7920
Width (mm)
2050
Height (mm)
1150
* Dependant on film quality, film gauge and bag size.
High Speed Performance
Speeds up to 350 cycles per minute.
Servo driven anti-bounce rollers and draw rollers ensure good web tension at all speeds producing accurate bag dimension.
Strong Seals
Consistent seal quality through use of high thermal conductivity seal bar material giving a uniform temperature profile.
Servo seal head allows adjustable seal times independent of machine speeds.
Versatility
Capable of sealing LDPE, LLDPE, HDPE, PP and co-extruded blends of various gauges.
A variety of optional accessories available for the production of wide range of bag styles.
